Pilates equipment plays a critical role in providing stability, resistance, comfort, and versatility during training. For Pilates studios, fitness centers, distributors, and equipment buyers, understanding the differences between Pilates machines, frame materials, upholstery, springs, rails, wheels, and manufacturing processes can help when selecting the right equipment for different applications.
This guide provides a comprehensive overview of the five core Pilates apparatus, common frame materials, upholstery options, key components, manufacturing processes, and packaging considerations.
A complete Pilates equipment setup commonly includes the Pilates Reformer, Cadillac, Wunda Chair, Ladder Barrel, and Spine Corrector. Each apparatus serves a different training purpose.

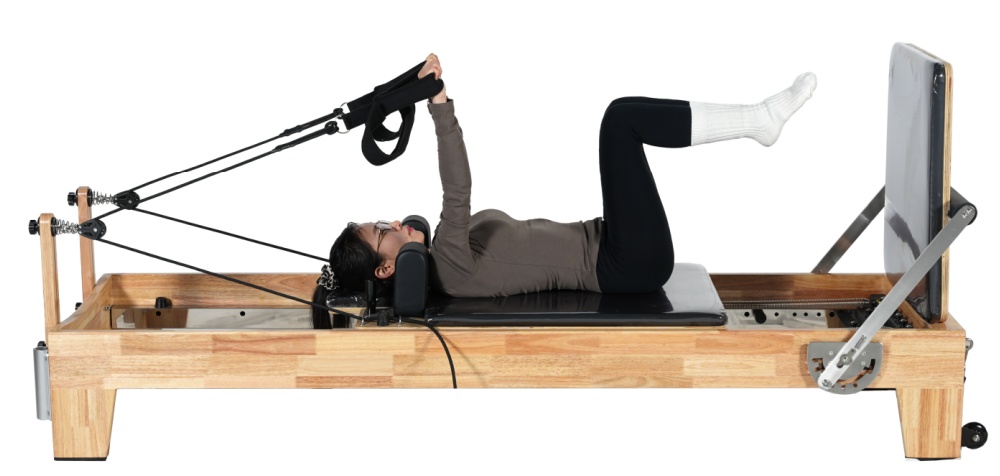

The Pilates Reformer is one of the most widely used pieces of Pilates equipment. Its relatively low platform consists of a frame, moving carriage, ropes or straps, footbar, shoulder rests, springs, and other accessories.
The carriage moves along the rails while springs provide adjustable resistance. By changing the spring configuration, users can modify the resistance according to their fitness level, exercise, and training objectives.
A well-designed Reformer should provide:
Smooth and stable carriage movement
Reliable spring resistance
Durable rails and wheels
Comfortable yet supportive upholstery
A strong frame capable of repeated commercial use
Flexible adjustment options for different users
Because of its versatility, the Reformer is widely used in Pilates studios, rehabilitation settings, fitness clubs, and home gyms.

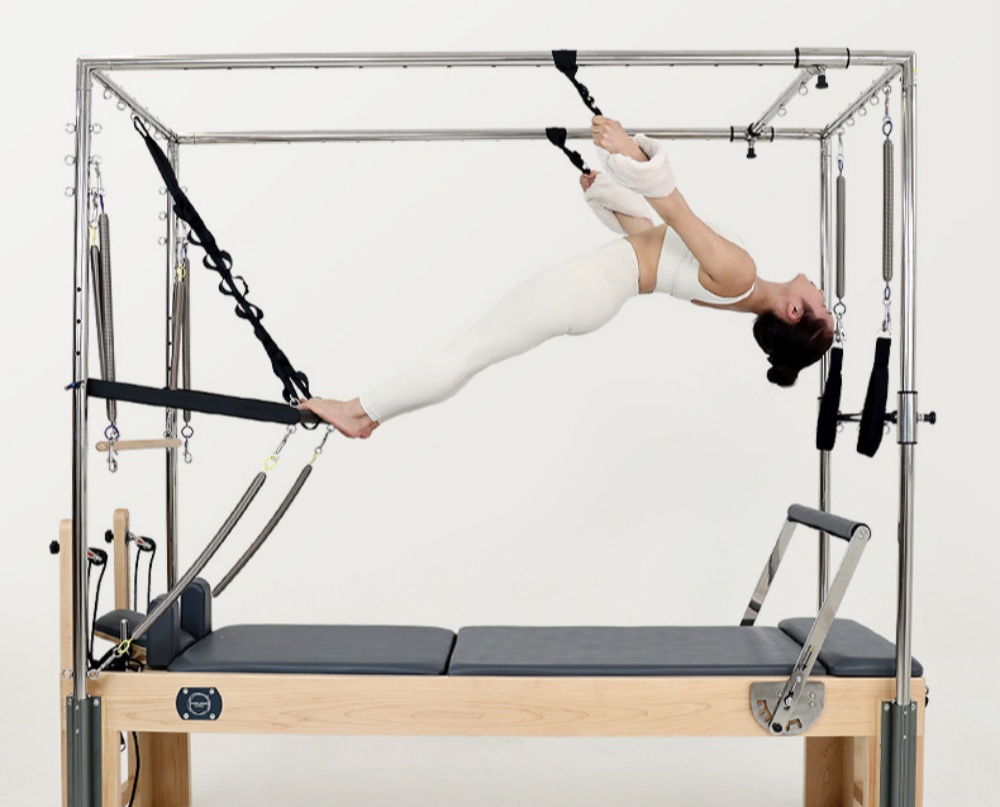

The Pilates Cadillac, also known as a Trapeze Table, features a higher platform and a large surrounding frame. Its main components typically include the table, springs, tower bars, push-through bars, trapeze frame, handles, straps, and other attachments.
Compared with a standard Reformer, the Cadillac provides more options for suspended and assisted exercises. It can support a wide variety of movements for strength, flexibility, mobility, coordination, and controlled resistance training.

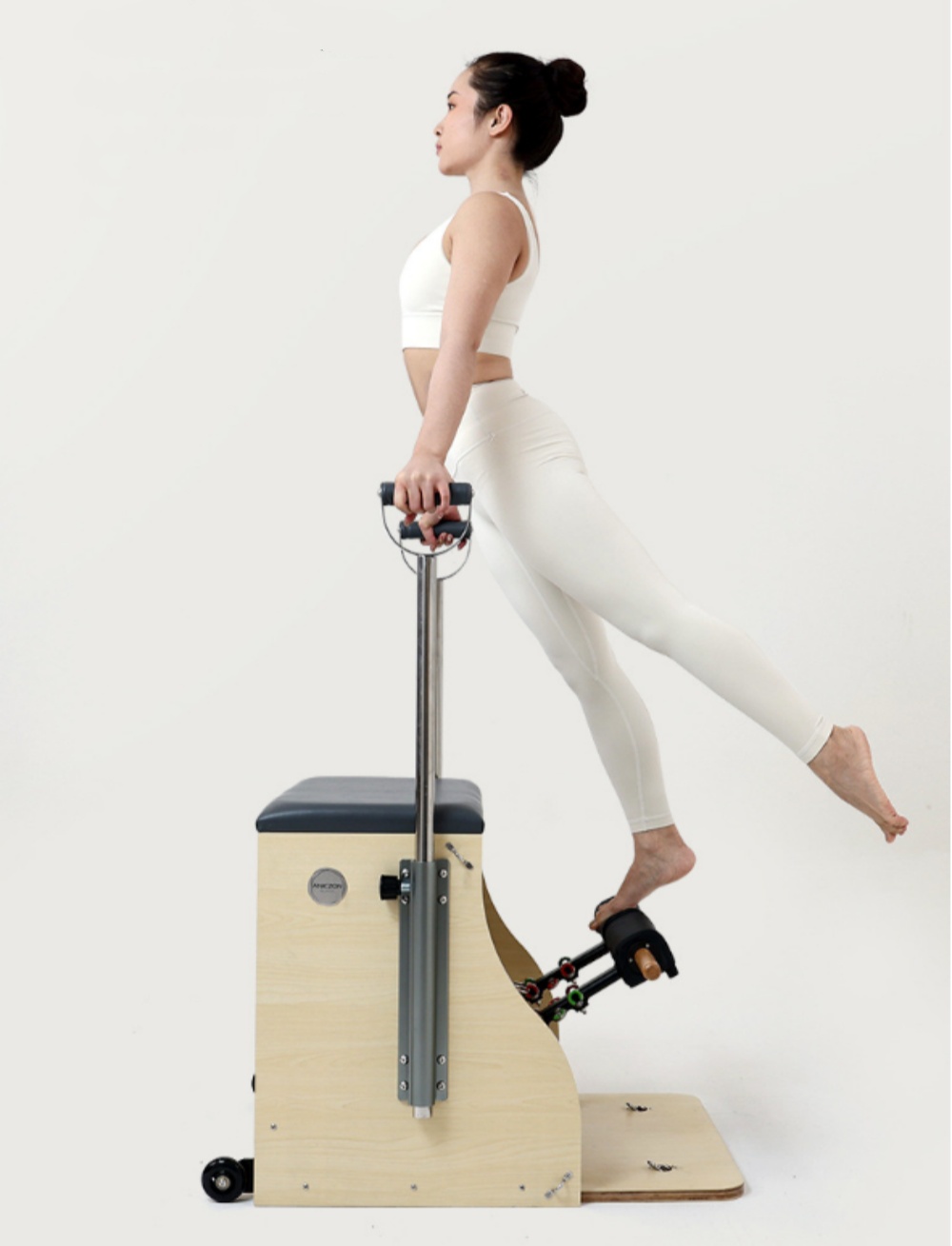

The Wunda Chair is a compact resistance-training apparatus primarily designed to challenge the trunk and limbs.
Its basic structure consists of:
A padded seat/platform
A pedal
Springs
Handles, depending on the design
The pedal and spring system provides adjustable resistance, while removable or height-adjustable handles can accommodate different exercises and training styles.
Because of its compact footprint, the Wunda Chair is particularly suitable for Pilates studios where space efficiency is important.

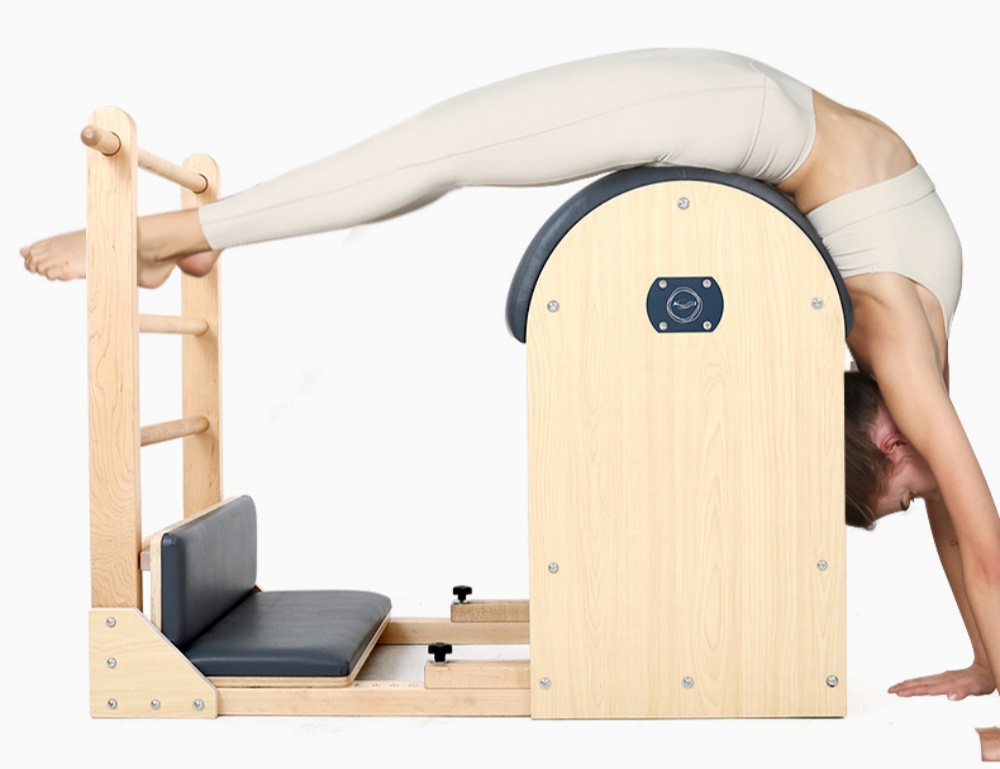

The Ladder Barrel combines a ladder structure with a curved barrel surface. The curved surface provides support for exercises involving spinal extension, stretching, mobility, and posture.
Many Ladder Barrels feature an adjustable base or sliding mechanism that allows the distance between the ladder and barrel to be changed. This makes it possible to accommodate users with different heights and body proportions.

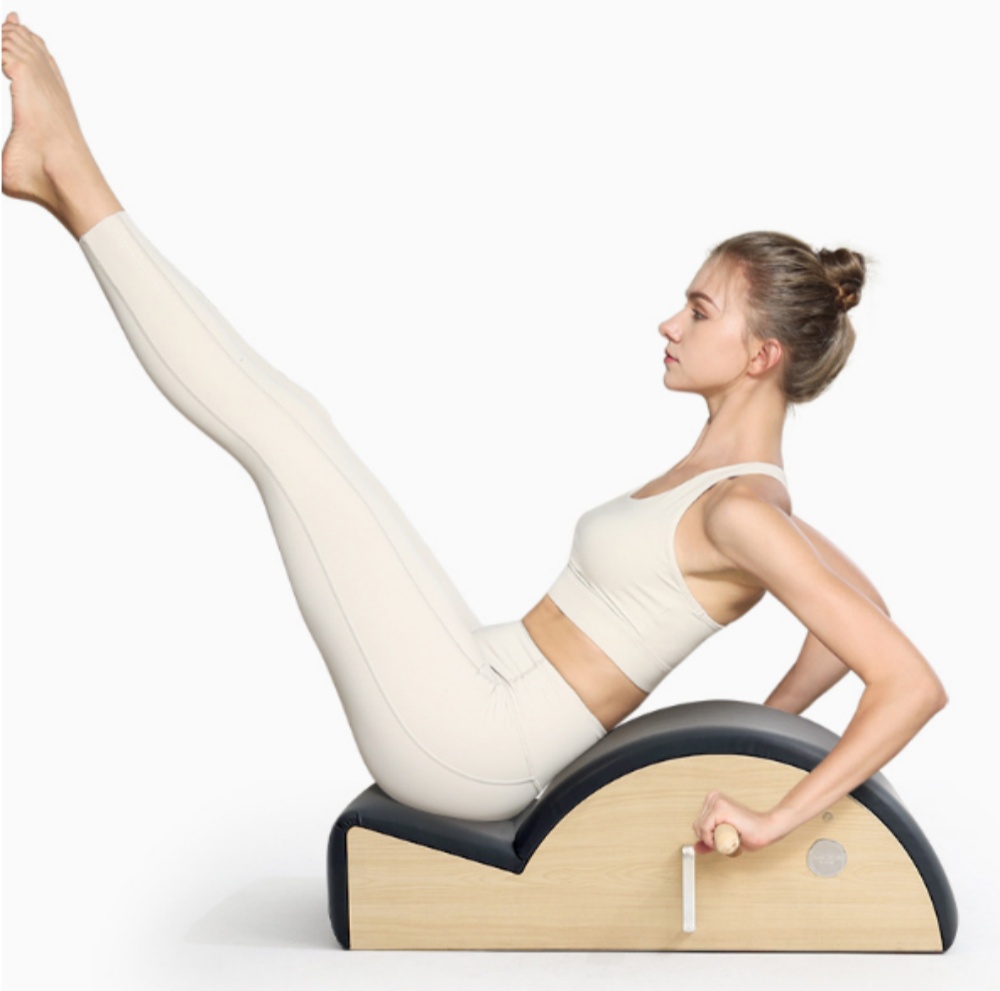

The Spine Corrector is a compact Pilates apparatus designed around a curved support surface. It can be used for exercises focusing on spinal mobility, posture, core control, stretching, and body alignment.
Its relatively small size also makes it convenient for studios and home Pilates environments.
The frame is one of the most important factors affecting the appearance, durability, weight, stability, and price of a Pilates machine.
Pilates frames are commonly manufactured from wood or metal, with different materials offering different characteristics.
The three common wood options are oak, beech, and maple.
Oak is widely used for Pilates equipment because of its combination of strength, appearance, and cost efficiency.
Many oak Pilates frames use finger-jointed or laminated wood construction, which can create a distinctive multi-tone appearance. Oak models are generally more affordable than solid maple or beech models and are therefore popular for commercial and wholesale applications.
Beech is a solid hardwood commonly associated with a warmer, reddish-toned appearance.
It provides a solid and premium feel while occupying a middle position in terms of price compared with common oak and maple options.
Maple is another premium hardwood option. It typically has a lighter, clean appearance and a fine, uniform grain.
Maple Pilates equipment is generally positioned at the higher end of the price range and is suitable for studios seeking a premium aesthetic.
Metal frames are commonly manufactured using aluminum alloy or carbon steel.
Aluminum alloy Pilates equipment is known for its relatively low weight, corrosion resistance, and modern appearance.
White finishes are particularly common, although black and other colors are also available. Aluminum alloy models are often positioned as premium products because of their lightweight construction and contemporary design.
Carbon steel provides high structural strength and is widely used for Pilates equipment frames and components.
It is generally more economical than aluminum alloy, although steel is typically heavier than aluminum alloy at the same volume. Carbon steel frames are therefore often selected when strength, durability, and cost efficiency are key priorities.
The upholstery directly affects the comfort, appearance, durability, and maintenance requirements of Pilates equipment.
Pilates upholstery generally consists of two main parts:
The outer upholstery material
The internal cushioning material

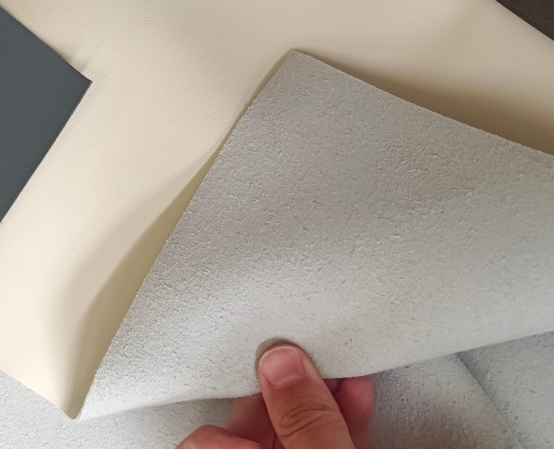

Common upholstery options include PU leather and microfiber leather.

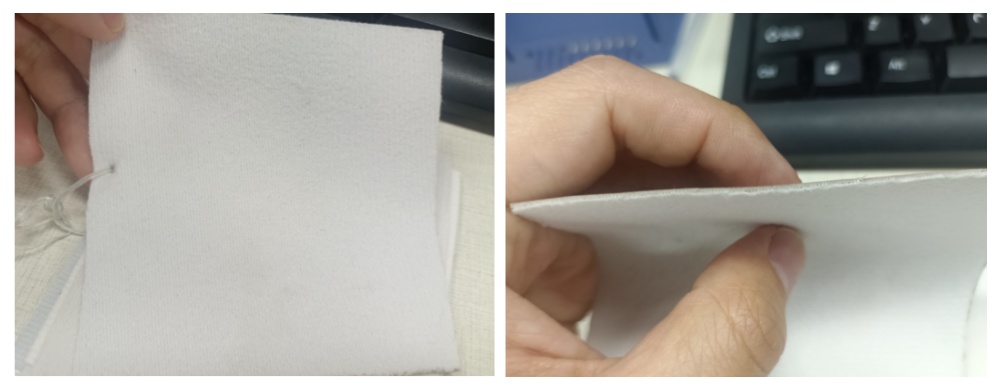

The main structural difference is found in their backing layers.
PU leather generally uses a fabric-based backing and includes a polymer coating or foam-related structure depending on the construction. Microfiber leather uses a three-dimensional microfiber substrate designed to more closely replicate the fibrous structure of natural leather.
Microfiber leather generally offers advantages such as:
Better breathability
Higher abrasion resistance
A more comfortable hand feel
A more leather-like backing structure
Good durability for frequent-use environments
For commercial Pilates studios where equipment is used repeatedly every day, upholstery durability is particularly important.
The main cushioning options include recycled foam, high-density foam, and EVA.
Recycled or rebonded foam is made from processed foam particles. It generally has a relatively firm feel and provides good structural support but limited resilience.
Because it can feel relatively hard on its own, it is often combined with another layer of foam to improve user comfort.
High-density foam provides a balance between support, resilience, and comfort.
Different foam densities can be selected according to the intended application and customer requirements. Because of its balance of performance and cost, high-density foam is one of the most commonly used cushioning materials for Pilates equipment.
EVA is a relatively firm material that provides excellent shape retention.
Compared with softer foam, EVA can create upholstery with cleaner edges and a more structured appearance. It is generally more expensive and has limited rebound compared with conventional cushioning foam.

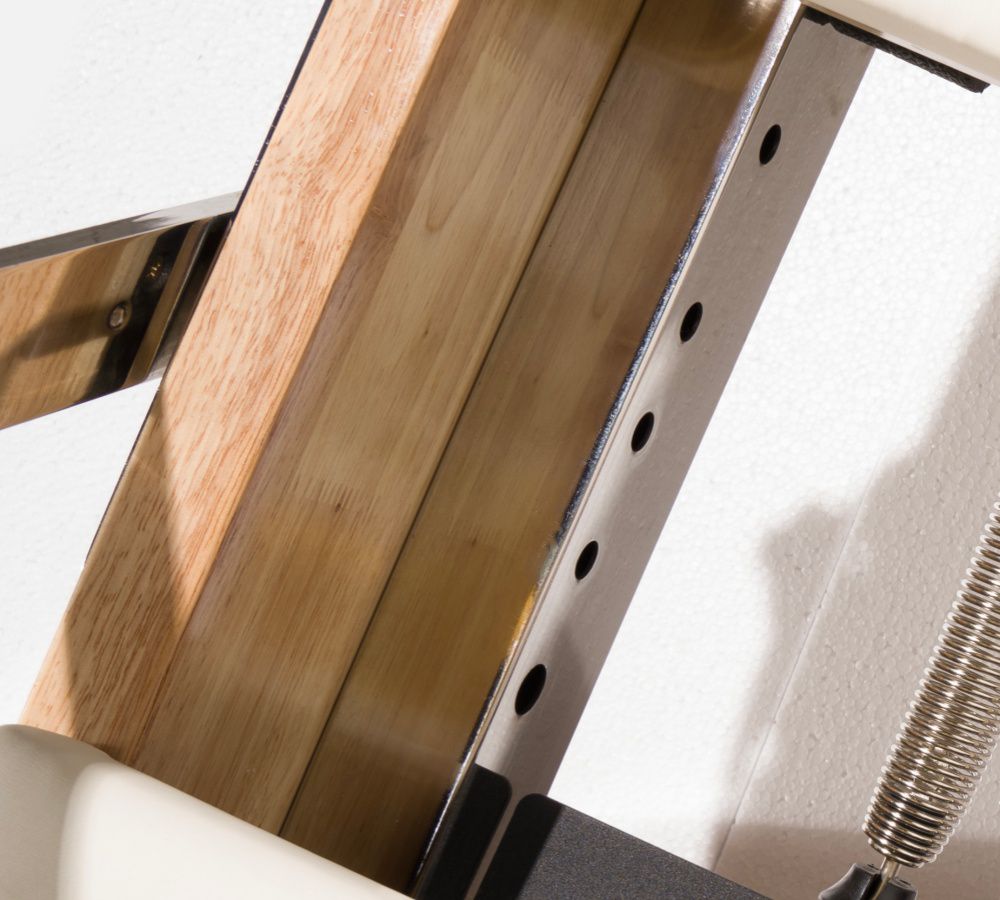

The quality of a Pilates Reformer depends not only on its frame but also on the performance of its individual components.
Rails support the carriage and are among the primary load-bearing components of a Reformer. Their material, thickness, machining precision, and surface finish can all affect carriage movement and long-term durability.
Common rail materials include:
Aluminum alloy
Stainless steel
Carbon steel
304 stainless-steel rails typically have a smooth, polished appearance and provide a cost-effective solution for many Reformer models.
Aluminum alloy rails can provide a refined appearance and are commonly used in higher-end designs.
For aluminum alloy Reformers, the frame itself can be engineered as the integrated carriage track, eliminating the need for separate rail installation.
The footbar allows users to perform a wide range of exercises at different angles.
A quality footbar should offer secure adjustment and sufficient structural strength. Stainless steel and aluminum alloy are common materials.
Stainless-steel footbars are widely used, while aluminum alloy components are often found in premium equipment designs where weight reduction and appearance are important.
Springs are essential to the resistance system of a Pilates Reformer.
They are available in different materials and quality grades. Depending on the supplier and specification, springs may be manufactured using domestic or imported materials, including materials sourced from South Korea, Japan, and Germany.
In general, higher-quality springs can provide:
More consistent resistance
Better durability
Smoother operation
Improved noise control
Longer service life
Spring selection should therefore consider not only the initial purchase price but also the expected frequency and intensity of equipment use.
The wheels are directly related to the smoothness and noise level of carriage movement.
Common options include standard PU wheels and high-resilience silent PU wheels.
Standard PU wheels can gradually deform when subjected to prolonged static loading, potentially affecting smooth carriage movement. They are therefore often used in applications where the load requirements are lower.
High-resilience PU wheels provide greater contact stability and improved resistance to deformation. They can also reduce operating noise and provide smoother movement, making them suitable for premium Pilates Reformers and commercial studio environments.
The manufacturing process has a direct impact on the structural integrity, appearance, and service life of Pilates equipment.
Wooden Pilates equipment can use several types of boards, including:
Solid wood
Finger-jointed wood
Plywood
Solid wood is commonly used for premium maple and beech frames.
Finger-jointed wood is frequently used for oak frames, offering a combination of material efficiency, strength, and distinctive appearance.
Plywood is often used for components such as Wunda Chairs, Ladder Barrels, and other structural sections rather than the main Reformer frame.
The manufacturing process begins with accurate cutting and drilling according to the equipment design.
Dimensional accuracy is essential because small deviations can affect assembly, component alignment, and overall stability.
After cutting, the edges are carefully processed to remove sharp corners and create smoother surfaces.
This improves both the appearance and user safety of the finished equipment.
Sanding smooths the wood surface and prepares it for finishing.
A properly sanded surface provides a more refined appearance and helps ensure that the subsequent coating adheres evenly.
The wooden frame is assembled using adhesive bonding and mechanical fasteners.
Adhesive bonding provides an initial structural connection, while screws and other mechanical fasteners provide additional reinforcement.
This combination helps improve the overall stability and durability of the finished frame.
The finishing process improves the appearance of the frame while providing additional protection against everyday wear and environmental exposure.
A high-quality finish should provide a smooth, consistent surface and appropriate resistance to abrasion and corrosion-related environmental effects.
Because Pilates Reformers and other apparatus are relatively large and contain precision components, packaging is an important part of the manufacturing and export process.
A typical packaging structure can include:
1. Protective film or bubble wrap around the equipment
2. Foam cushioning around vulnerable areas
3. Reinforced outer packaging
4. A wooden crate for additional protection during international transportation
Bubble wrap and foam cushioning help protect painted surfaces, upholstery, wooden components, and metal parts from scratches and impact during handling.
For international B2B shipments, reinforced wooden crates can provide an additional layer of protection during loading, unloading, container transportation, and warehouse handling.
When purchasing Pilates machines for a studio, distributor, fitness business, or home gym, looking only at the equipment's appearance or price is not enough.
Key factors to consider include:
Choose between oak, beech, maple, aluminum alloy, and carbon steel according to the desired appearance, structural requirements, weight, and budget.
Consider the difference between PU and microfiber leather, as well as the density and characteristics of the internal cushioning material.
Spring consistency, durability, resistance, and noise level can significantly affect the training experience.
Smooth carriage movement depends heavily on rail precision and wheel quality. These components deserve particular attention when comparing Reformers.
Accurate cutting, drilling, sanding, assembly, finishing, and quality control all contribute to the reliability of the final product.
For international orders, protective packaging is particularly important because large Pilates machines may go through multiple transportation and handling stages before reaching the final destination.
For Pilates studios, distributors, importers, and fitness equipment retailers, Pilates equipment is a long-term investment rather than a one-time purchase.
A lower initial price does not necessarily mean lower total cost. Component durability, maintenance requirements, user experience, warranty support, packaging quality, and replacement-part availability can all influence the actual cost of ownership.
For Commercial Operations buyers, a professional Pilates equipment manufacturer should therefore be evaluated across the entire production chain—from raw materials and component selection to manufacturing, assembly, quality control, and export packaging.
From the Reformer and Cadillac to the Wunda Chair, Ladder Barrel, and Spine Corrector, each Pilates apparatus has a distinct role in a complete Pilates training environment. At the same time, frame material, upholstery, cushioning, rails, springs, wheels, manufacturing processes, and packaging all contribute to the final quality of the equipment.
Understanding these differences makes it easier for Pilates studio owners, distributors, wholesalers, and fitness businesses to select equipment that matches their performance requirements, target market, budget, and brand positioning.
As a professional Pilates equipment manufacturer, Wavar focuses on providing Pilates equipment solutions for commercial operations customers, with options for different frame materials, configurations, components, finishes, and customization requirements. Whether you are developing a Pilates studio, expanding a fitness equipment product line, or sourcing Reformers for wholesale distribution, choosing the right equipment specification is an important first step toward building a reliable Pilates business.
